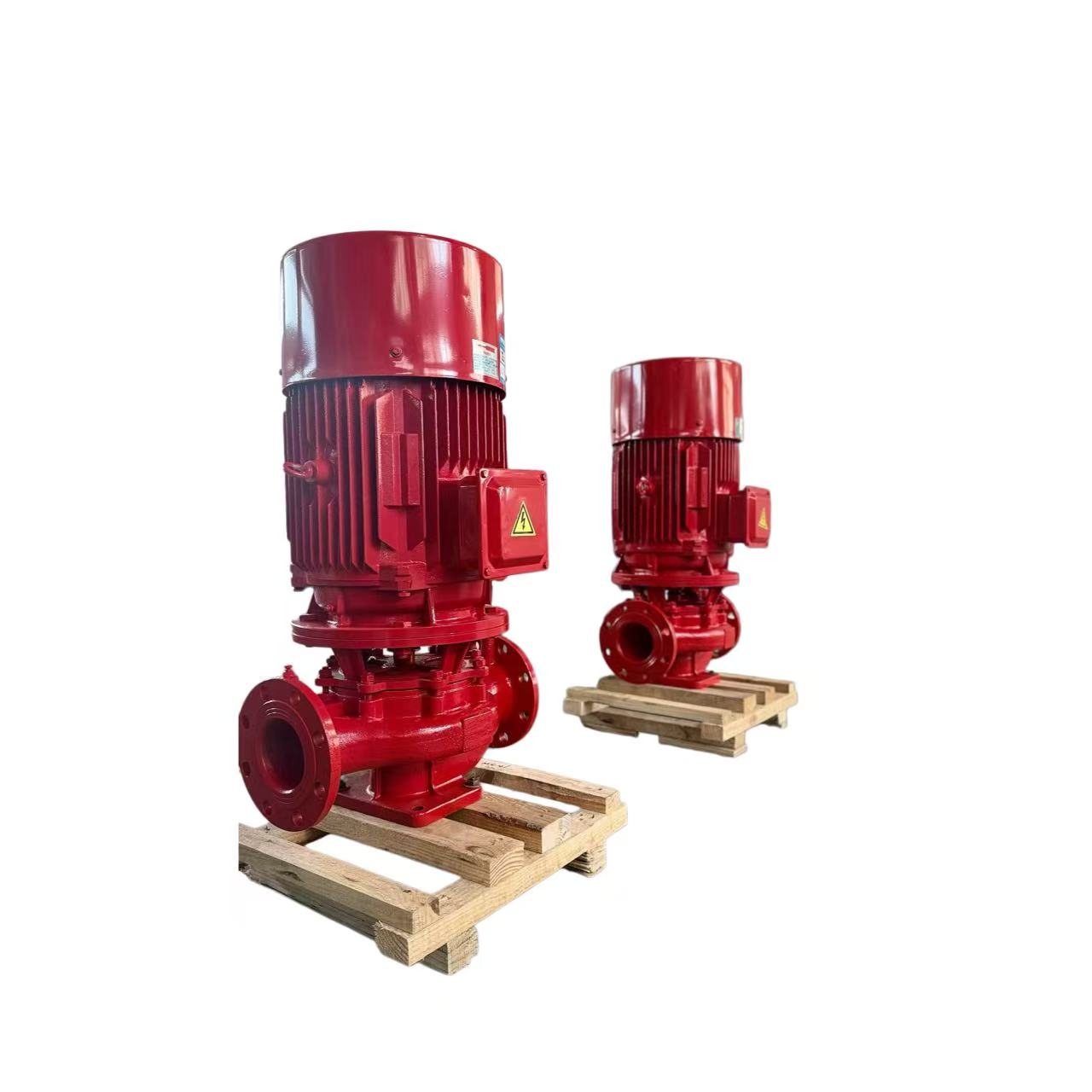

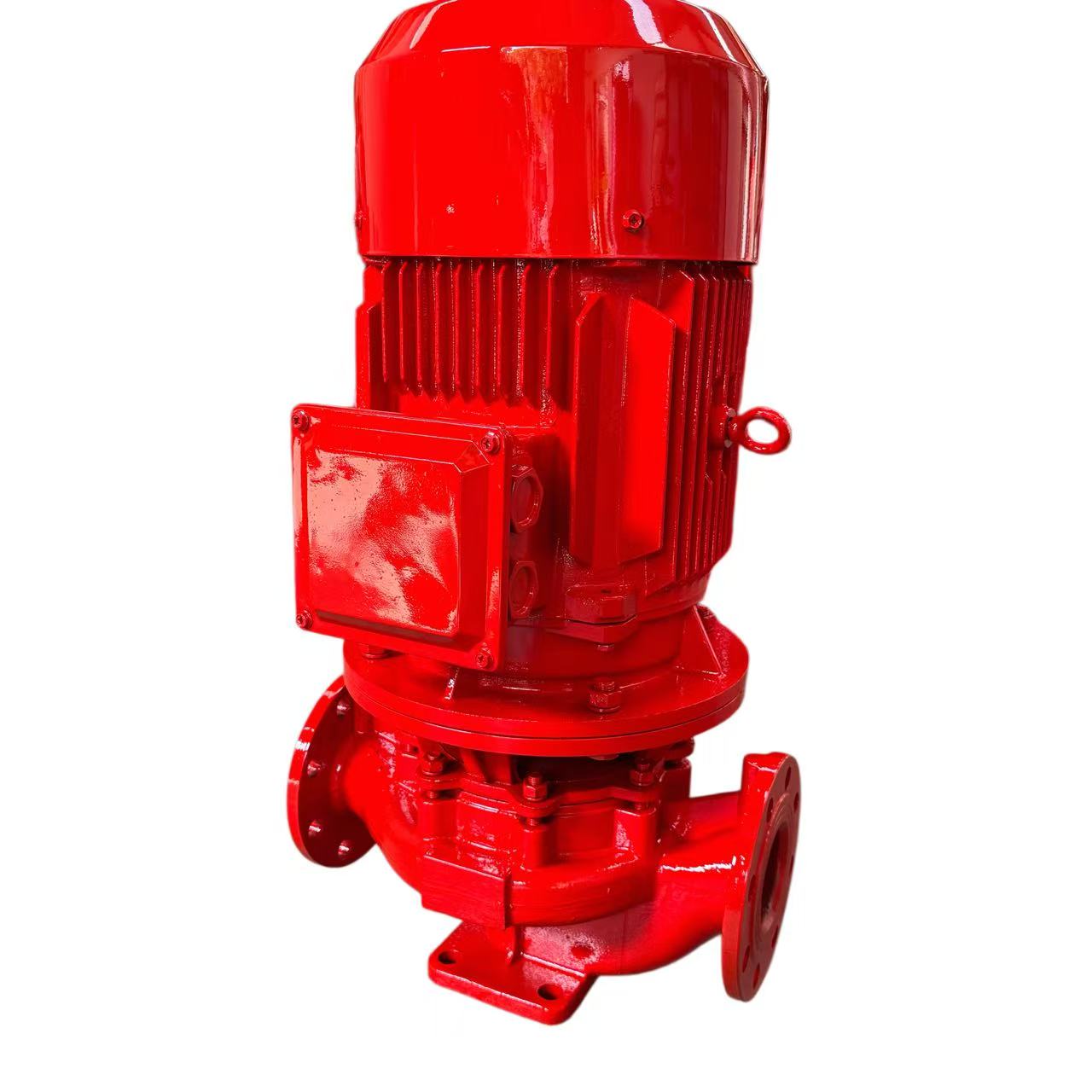

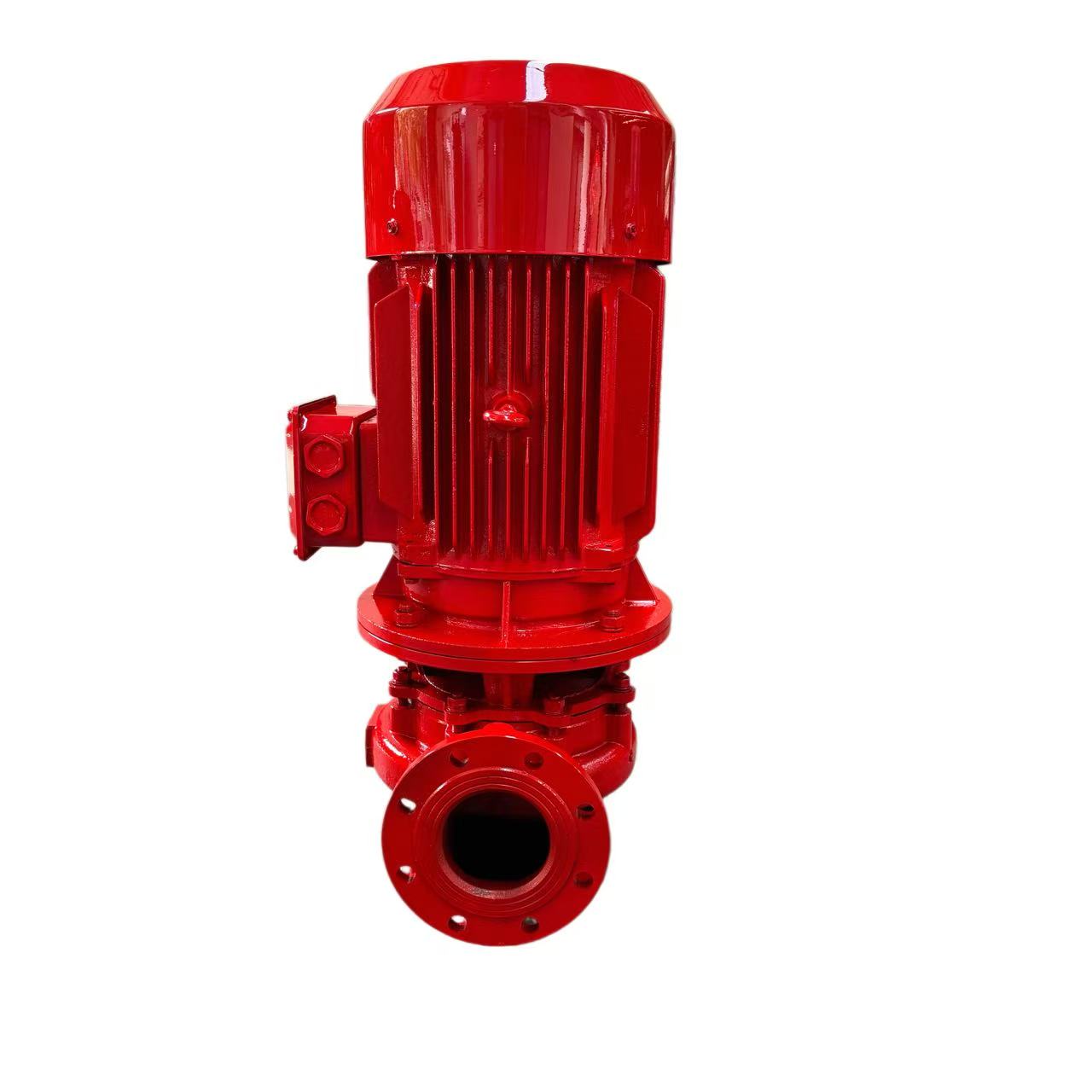

Vertical Single-stage Fire Pump Set (XBD Series)

Shanghai Ouhu Pump Manufacturing Co., Ltd. is a professional manufacturer of XBD series vertical single-stage fire pump sets, which are designed for reliable fire water supply in high-rise buildings, commercial complexes, industrial parks and other fire protection scenarios.

Our vertical single-stage fire pumps are manufactured in strict accordance with NFPA 20, ISO9001 and GB 6245 standards, featuring high efficiency, energy saving, stable performance and long service life. Equipped with advanced hydraulic design and precision manufacturing, they can provide stable fire water supply in emergency situations, ensuring the safety of personnel and property.

We provide customized solutions, professional technical support and perfect after-sales service for global customers, with factory direct price and fast delivery.

Model:	XBD Series Vertical Single-stage Fire Pump
Flow Rate:	4-100 L/S (14.4-360 m³/h)
Pressure:	0.3-1.6 Mpa (3-16 Bar)
Power:	4-200 kW (5.4-268 HP)
Inlet/Outlet Size:	DN50-DN300
Availability:

Quantity:



Inquire Add to Basket

Model:
xbd
Brand:
ouhu

Product Description

Product Overview

● The XBD-G series vertical motor-driven fire pump sets (vertical single-stage fire pump sets) are a new generation of pipeline pump fire pump sets designed and developed by our company in accordance with the latest fire pump standards and mandatory certification requirements for fire protection products. Their performance and technical specifications comply with the relevant requirements of the national standards GB6245 "Fire Pumps" and GB50974 "Technical Specifications for Fire Water Supply and Fire Hydrant Systems".

● This series of products can be verified on the Fire Protection Product Information Network of the Ministry of Public Security (www.cccf.net.cn).

Product Features

● Direct-coupled and compact structure; the pump body adopts a streamlined design; the reinforcing ribs are arranged simply, resulting in an aesthetically pleasing appearance;

● The hydraulic model uses CD optimization design, and through three-dimensional design theory, model optimization design, and pump dynamic characteristic analysis methods, the pump efficiency is maximized, and the high-efficiency operating range of the pump is broadened. The molds for the flow-through parts are manufactured using CNC machining, and the castings use resin sand molding, ensuring the dimensional accuracy and surface finish of the parts;

● The main structural components are designed using FM optimization, verifying the rationality of the structural design and load-bearing requirements of the parts.

● High-efficiency three-phase asynchronous motors are selected, and the efficiency indicators meet the energy efficiency standards of GB18613 "Energy Efficiency Limits and Energy Efficiency Grades for Small and Medium-sized Three-Phase Asynchronous Motors"; the motor protection class is IP55, and the insulation class is F.

Operating Conditions and Performance Parameters:

Flow Rate: 5~100 Us

Head: 32m~155m

Power: 1.5KW~200KW

Diameter: DN50~250mm

Rotational Speed: 2900 r/min

Material: Ductile iron pump body, stainless steel impeller, stainless steel shaft

Product Applications

This product can be widely used in water supply systems for fire protection in industrial and civil buildings (fire hydrant systems, automatic sprinkler systems).

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
1	XBD3.5/5G-L	5	0.35	4	DN65	1470
2	XBD4.5/5G-L	5	0.45	5.5	DN65	1950
3	XBD6.0/5G-L	5	0.60	7.5	DN65	2205
4	XBD7.0/5G-L	5	0.70	11	DN65	2835
5	XBD8.5/5G-L	5	0.85	15	DN65	3229.5
6	XBD12.5/5G-L	5	1.25	30	DN65	5250
7	XBD10.0/5G-L	5	1.00	18.5	DN65	3600
8	XBD11.0/5G-L	5	1.10	22	DN65	4095
9	XBD3.2/10G-L	10	0.32	7.5	DN80	2205
10	XBD4.5/10G-L	10	0.45	11	DN80	2835
11	XBD5.0/10G-L	10	0.5	15	DN80	3225
12	XBD6.0/10G-L	10	0.60	15	DN80	3225
13	XBD7.0/10G-L	10	0.70	18.5	DN80	3600
14	XBD8.5/10G-L	10	0.81	22	DN80	4095
15	XBD10.5/10G-L	10	1.05	30	DN80	5325
16	XBD12.0/10G-L	10	1.20	37	DN80	5700
17	XBD3.2/15G-L	15	3.2	7.5	DN80	2205
18	XBD4.0/15G-L	15	0.40	11	DN80	2835
19	XBD5.4/15G-L	15	0.54	15	DN80	3225
20	XBD6.0/15G-L	15	0.60	18.5	DN80	3600
21	XBD6.3/15G-L	15	0.63	18.5	DN80	3600
22	XBD7.2/15G-L	15	0.72	22	DN80	4095
23	XBD8.4/15G-L	15	0.84	30	DN80	5475
24	XBD11.5/15G-L	15	1.15	37	DN80	5820
25	XBD12.0/15G-L	15	1.20	37	DN80	5820
26	XBD13.0/15G-L	15	1.30	45	DN80	8175
27	XBD14.2/15G-L	15	1.42	55	DN80	9945
28	XBD3.2/20G-L	20	0.32	11	DN100	2835
29	XBD3.8/20G-L	20	0.38	15	DN100	3225
30	XBD4.0/20G-L	20	0.40	15	DN100	3225
31	XBD4.4/20G-L	20	0.44	18.5	DN100	3600
32	XBD5.2/20G-L	20	0.55	22	DN100	4170
33	XBD6.0/20G-L	20	0.60	22	DN100	4170
34	XBD6.5/20G-L	20	0.65	30	DN100	5250
35	XBD7.0/20G-L	20	0.70	30	DN100	5250
36	XBD7.5/20G-L	20	0.75	37	DN100	5700
37	XBD8.0/20G-L	20	0.80	37	DN100	5700
38	XBD8.5/20G-L	20	0.85	37	DN100	5700

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
39	XBD9.0/20G-L	20	0.90	37	DN100	5925
40	XBD9.5/20G-L	20	0.95	45	DN100	8175
41	XBD10.0/20G-L	20	1.00	45	DN100	8175
42	XBD11.0/20G-L	20	1.10	55	DN100	9975
43	XBD12.0/20G-L	20	1.20	55	DN100	9975
44	XBD12.5/20G-L	20	1.25	75	DN100	12330
45	XBD13.0/20G-L	20	1.30	55	DN100	12330
46	XBD13.5/20G-L	20	1.35	75	DN100	12330
47	XBD14.0/20G-L	20	1.40	75	DN100	12330
48	XBD15.0/20G-L	20	1.5	75	DN100	12330
49	XBD15.5/20G-L	20	1.55	90	DN100	13200
50	XBD2.8/25G-L	25	0.28	11	DN100	2835
51	XBD3.8/25G-L	25	0.38	15	DN100	3225
52	XBD4.4/25G-L	25	0.44	18.5	DN100	3675
53	XBD5.0/25G-L	25	0.50	22	DN100	4170
54	XBD5.5/25G-L	25	0.55	22	DN100	4170
55	XBD5.9/25G-L	25	0.60	22	DN100	4170
56	XBD7.0/25G-L	25	0.70	30	DN100	5250
57	XBD8.0/25G-L	25	0.80	37	DN100	5775
58	XBD8.5/25G-L	25	0.85	37	DN100	5775
59	XBD9.0/25G-L	25	0.90	45	DN100	8175
60	XBD10.0/25G	25	1.00	45	DN100	8175
61	XBD11.0/25G-L	25	1.10	55	DN100	9975
62	XBD12.0/25G-L	25	1.2	55	DN100	9975
63	XBD12.5/25G-L	25	1.25	75	DN100	12330
64	XBD13.0/25G-L	25	1.30	75	DN100	12375
65	XBD13.5/25G-L	25	1.35	75	DN100	12450
66	XBD13.7/25G-L	25	1.37	75	DN100	12450
67	XBD14.0/25G-L	25	1.4	75	DN100	12450
68	XBD14.5/25G-L	25	1.45	90	DN100	13335
69	XBD15.0/25G-L	25	1.50	90	DN100	13335
70	XBD15.5/25G-L	25	1.55	110	DN100	24000
71	XBD2.8/30G-L	30	0.28	15	DN100	3240
72	XBD3.2/30G-L	30	0.32	15	DN100	3240
73	XBD3.8/30G-L	30	0.38	18.5	DN100	3675
74	XBD4.4/30G-L	30	0.44	22	DN100	4170
75	XBD5.0/30G-L	30	50	22	DN100	4170
76	XBD5.5/30G-L	30	0.55	30	DN100	5250

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
77	XBD6.0/30G-L	30	0.6	30	DN100	5250
78	XBD7.0/30G-L	30	0.7	37	DN100	5700
79	XBD7.5/30G-L	30	0.75	37	DN100	5700
80	XBD8.0/30G-L	30	0.8	37	DN100	5700
81	XBD8.5/30G-L	30	0.85	45	DN100	8100
82	XBD9.0/30G-L	30	0.90	45	DN100	8100
83	XBD9.5/30G-L	30	0.95	45	DN100	8100
84	XBD10.0/30G-L	30	1.00	55	DN100	9975
85	XBD11.0/30G-L	30	1.10	55	DN100	9975
86	XBD12.0/30G-L	30	1.20	75	DN100	12300
87	XBD12.5/30G-L	30	1.25	75	DN100	12300
88	XBD13.0/30G-L	30	1.30	75	DN100	12300
89	XBD13.5/30G-L	30	1.35	75	DN100	12300
90	XBD14.0/30G-L	30	1.40	90	DN100	13200
91	XBD14.5/30G-L	30	1.45	90	DN100	13200
92	XBD15.0/30G-L	30	1.50	110	DN100	24750
93	XBD15.5/30G-L	30	1.55	110	DN100	24750
94	XBD3.2/35G-L	35	0.32	22	DN125	4200
95	XBD4.0/35G-L	35	0.4	30	DN125	5250
96	XBD4.4/35G-L	35	0.44	30	DN125	5250
97	XBD5.0/35G-L	35	0.50	37	DN125	5700
98	XBD5.5/35G-L	35	0.55	37	DN125	5700
99	XBD6.0/35G-L	35	0.60	37	DN125	5700
100	XBD6.5/35G-L	35	0.65	37	DN125	5700
101	XBD7.0/35G-L	35	0.7	45	DN125	8100
102	XBD7.4/35G-L	35	0.74	45	DN125	8100
103	XBD8.0/35G-L	35	0.80	55	DN125	9975
104	XBD9.0/35G-L	35	0.9	55	DN125	9975
105	XBD9.5/35G-L	35	0.95	55	DN125	9975
106	XBD10.0/15G-L	35	1.50	30	DN125	9975
107	XBD10.0/35G-L	35	1.0	55	DN125	9975
108	XBD10.5/35G-L	35	1.05	75	DN125	12300
109	XBD11.0/35G-L	35	1.1	75	DN125	12300
110	XBD11.5/35G-L	35	1.15	75	DN125	12300
111	XBD12.0/35G-L	35	1.2	75	DN125	12300
112	XBD12.5/35G-L	35	1.25	90	DN125	13200
113	XBD13.0/35G-L	35	1.3	75	DN125	12300
114	XBD13.5/35G-L	35	1.35	90	DN125	13200

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
115	XBD14.0/35G-L	35	1.4	90	DN125	13200
116	XBD14.4/35G-L	35	1.44	90	DN125	13200
117	XBD15.0/35G-L	35	1.50	110	DN125	24750
118	XBD15.5/35G-L	35	1.55	110	DN125	24750
119	XBD3.2/40G-L	40	0.32	22	DN125	4350
120	XBD4.0/40G-L	40	0.40	30	DN125	5400
121	XBD4.5/40G-L	40	0.5	30	DN125	5400
122	XBD5.0/40G-L	40	0.50	37	DN125	5850
123	XBD5.5/40G-L	40	0.55	37	DN125	5850
124	XBD6.0/40G-L	40	0.60	37	DN125	5850
125	XBD6.5/40G-L	40	0.65	45	DN125	8175
126	XBD7.0/40G-L	40	0.70	45	DN125	8175
127	XBD7.5/40G-L	40	0.75	45	DN125	8175
128	XBD8.0/40G-L	40	0.80	55	DN125	10050
129	XBD8.5/40G-L	40	0.85	55	DN125	10050
130	XBD9.0/40G-L	40	0.90	75	DN125	5550
131	XBD9.5/40G-L	40	0.95	55	DN125	10050
132	XBD10.0/40G-L	40	1.00	75	DN125	12300
133	XBD10.5/40G-L	40	1.05	55	DN125	12300
134	XBD11.0/40G-L	40	1.10	75	DN125	12300
135	XBD11.5/40G-L	40	1.15	75	DN125	12300
136	XBD12.0/40G-L	40	1.20	75	DN125	12300
137	XBD12.5/40G-L	40	1.25	90	DN125	13200
138	XBD13.0/40G-L	40	1.3	90	DN125	13200
139	XBD13.5/40G-L	40	1.35	90	DN125	13200
140	XBD14.0/40G-L	40	1.4	90	DN125	13200
141	XBD14.2/40G-L	40	1.42	110	DN125	24750
142	XBD14.5/40G-L	40	1.45	110	DN125	24750
143	XBD15.0/40G-L	40	1.50	132	DN125	29250
144	XBD15.5/40G-L	40	1.55	132	DN125	29250
145	XBD4.0/45G-L	45	0.40	30	DN125	5475
146	XBD5.0/45G-L	45	0.50	37	DN125	5925
147	XBD6.0/45G-L	45	0.60	45	DN125	8250
148	XBD7.0/45G-L	45	0.70	55	DN125	10050
149	XBD7.7/45G-L	45	0.77	75	DN125	10050
150	XBD8.0/45G-L	45	0.80	55	DN125	10050
151	XBD9.0/45G-L	45	0.90	75	DN125	12450
152	XBD10.0/45G-L	45	1.00	75	DN125	12450

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
153	XBD11.0/45G-L	45	1.1	75	DN125	12450
154	XBD11.5/45G-L	45	1.15	90	DN125	13350
155	XBD12.0/45G-L	45	1.2	75	DN125	13350
156	XBD12.5/45G-L	45	1.25	90	DN125	13350
157	XBD13.0/45G-L	45	1.3	90	DN125	13350
158	XBD14.0/45G-L	45	1.40	110	DN125	24750
159	XBD15.0/45G-L	45	1.5	110	DN125	24750
160	XBD3.8/50G-L	50	0.38	30	DN150	5475
161	XBD4.4/50G-L	50	0.44	37	DN150	5850
162	XBD5.0/50G-L	50	0.5	37	DN150	5850
163	XBD5.5/50G-L	50	0.55	45	DN150	8250
164	XBD6.0/50G-L	50	0.60	45	DN150	8250
165	XBD7.3/50G-L	50	0.73	55	DN150	10120
166	XBD7.5/50G-L	50	0.7	75	DN150	12450
167	XBD8.0/50G-L	50	0.80	75	DN150	12450
168	XBD9.0/50G-L	50	0.9	75	DN150	12600
169	XBD9.5/50G-L	50	0.95	75	DN150	12600
170	XBD10.0/50G-L	50	1.00	90	DN150	13425
171	XBD10.8/50G-L	50	1.08	110	DN150	24750
172	XBD11.0/50G-L	50	1.10	90	DN150	13425
173	XBD12.0/50G-L	50	1.20	110	DN150	24750
174	XBD13.0/50G-L	50	1.3	90	DN150	13425
175	XBD13.5/50G-L	50	1.35	110	DN150	24750
176	XBD14.0/50G-L	50	1.4	110	DN150	24750
177	XBD14.5/50G-L	50	1.45	132	DN150	29250
178	XBD15.0/50G-L	50	1.5	132	DN150	29250
179	XBD15.5/50G-L	50	1.55	160	DN150	34500
180	XBD5.0/55G-L	55	0.5	37	DN150	6225
181	XBD6.0/55G-L	55	0.6	45	DN150	8475
182	XBD7.0/55G-L	55	0.7	55	DN150	10275
183	XBD8.0/55G-L	55	0.8	75	DN150	12675
184	XBD9.0/55G-L	55	0.9	75	DN150	12675
185	XBD10.0/55G-L	55	1	75	DN150	12675
186	XBD11.0/55G-L	55	1.1	90	DN150	13800
187	XBD12.0/55G-L	55	1.2	110	DN150	25500
188	XBD13.0/55G-L	55	1.3	110	DN150	25500
189	XBD14.0/55G-L	55	1.4	110	DN150	25500
190	XBD15.0/55G-L	55	1.5	132	DN150	30000

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
191	XBD4.0/60G-L	60	0.40	45	DN150	8550
192	XBD5.0/60G-L	60	0.50	55	DN150	10200
193	XBD6.0/60G-L	60	0.60	55	DN150	10200
194	XBD7.0/60G-L	60	0.70	75	DN150	12675
195	XBD7.5/60G-L	60	0.75	55	DN150	10200
196	XBD8.0/60G-L	60	0.80	75	DN150	12675
197	XBD8.5/60G-L	60	0.85	75	DN150	12675
198	XBD9.0/60G-L	60	0.90	90	DN150	13800
199	XBD9.5/60G-L	60	0.95	90	DN150	13800
200	XBD10.0/60G-L	60	1.00	90	DN150	13800
201	XBD11.0/60G-L	60	1.10	110	DN150	25500
202	XBD12.0/60G-L	60	1.2	110	DN150	25500
203	XBD12.5/60G-L	60	1.25	132	DN150	30000
204	XBD13.0/60G-L	60	1.3	132	DN150	30000
205	XBD14.0/60G-L	60	1.4	132	DN150	30000
206	XBD15.0/60G-L	60	1.5	160	DN150	345000
207	XBD15.5/60G-L	60	1.55	185	DN150	39750
208	XBD5.0/70G-L	70	0.5	55	DN200	10800
209	XBD6.0/70G-L	70	0.60	75	DN200	12900
210	XBD7.0/70G-L	70	0.7	75	DN200	12900
211	XBD7.5/70G-L	70	0.75	75	DN200	12900
212	XBD8.0/70G-L	70	0.80	90	DN200	14250
213	XBD8.5/70G-L	70	0.85	90	DN200	14250
214	XBD9.0/70G-L	70	0.90	90	DN200	14250
215	XBD9.5/70G-L	70	0.95	90	DN200	14250
216	XBD10.0/70G-L	70	1.00	110	DN200	26250
217	XBD10.5/70G-L	70	1.05	132	DN200	30000
218	XBD11.0/70G-L	70	1.1	132	DN200	30000
219	XBD12.0/70G-L	70	1.2	132	DN200	30000
220	XBD13.0/70G-L	70	1.3	160	DN200	36750
221	XBD14.0/70G-L	70	1.4	160	DN200	36750
222	XBD15.0/70G-L	70	1.5	160	DN200	36750
223	XBD15.5/70G-L	70	1.55	200	DN200	42750
224	XBD5.0/80G-L	80	0.5	55	DN200	10800
225	XBD6.0/80G-L	80	0.6	75	DN200	12900
226	XBD7.0/80G-L	80	0.7	90	DN200	14250
227	XBD8.0/80G-L	80	0.8	110	DN200	27750
228	XBD9.0/80G-L	80	0.9	110	DN200	27750

Serial number	Model and specifications	Flow	Pressure	Power	Caliber	Price
Serial number	Model and specifications	L/S	Mpa	KW	DN	Yuan
229	XBD10.0/80G-L	80	1	132	DN200	31500
230	XBD11.0/80G-L	80	1.1	132	DN200	31500
231	XBD12.0/80G-L	80	1.2	132	DN200	31500
232	XBD13.0/80G-L	80	1.3	160	DN200	36750
233	XBD14.0/80G-L	80	1.4	185	DN200	41250
234	XBD15.0/80G-L	80	1.5	200	DN200	44250
235	XBD5.0/90G-L	90	0.5	75	DN200	13500
236	XBD6.0/90G-L	90	0.6	90	DN200	14700
237	XBD7.0/90G-L	90	0.7	110	DN200	27750
238	XBD7.5/90G-L	90	0.75	110	DN200	27750
239	XBD8.0/90G-L	90	0.8	132	DN200	31500
240	XBD9.0/90G-L	90	0.9	160	DN200	36750
241	XBD9.5/90G-L	90	0.95	160	DN200	36750
242	XBD10.0/90G-L	90	1.0	185	DN200	41250
243	XBD11.0/90G-L	90	1.1	200	DN200	44250
244	XBD12.0/90G-L	90	1.2	200	DN200	44250
245	XBD13.0/90G-L	90	1.3	200	DN200	44250
246	XBD5.0/100G-L	100	0.53	110	DN200	27750
247	XBD6.0/100G-L	100	0.63	132	DN200	32250
248	XBD7.0/100G-L	100	0.73	160	DN200	37500
249	XBD7.8/100G-L	100	0.78	200	DN200	45000
250	XBD8.0/100G-L	100	0.83	185	DN200	42000

Vertical Single-stage Fire Pump XBD Vertical Fire Pump Vertical Fire Pump Fire Pump Manufacturer Fire Pump Supplier Fire Pump Systems fire fighting pump

Related Products

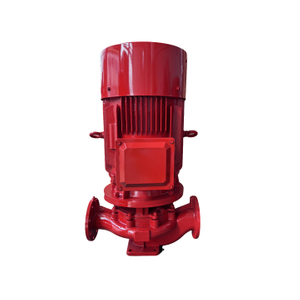

Vertical Single-stage Fire Pump Set

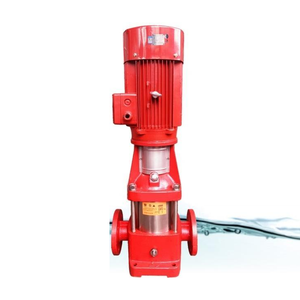

Vertical Multistage Fire-fighting Pressure Boosting Pump Unit

Vertical Multi-stage Fire-fighting Pressure Boosting Water Supply Equipment

Fire Pump & Water Supply Pump Set

Get A Free Quote
