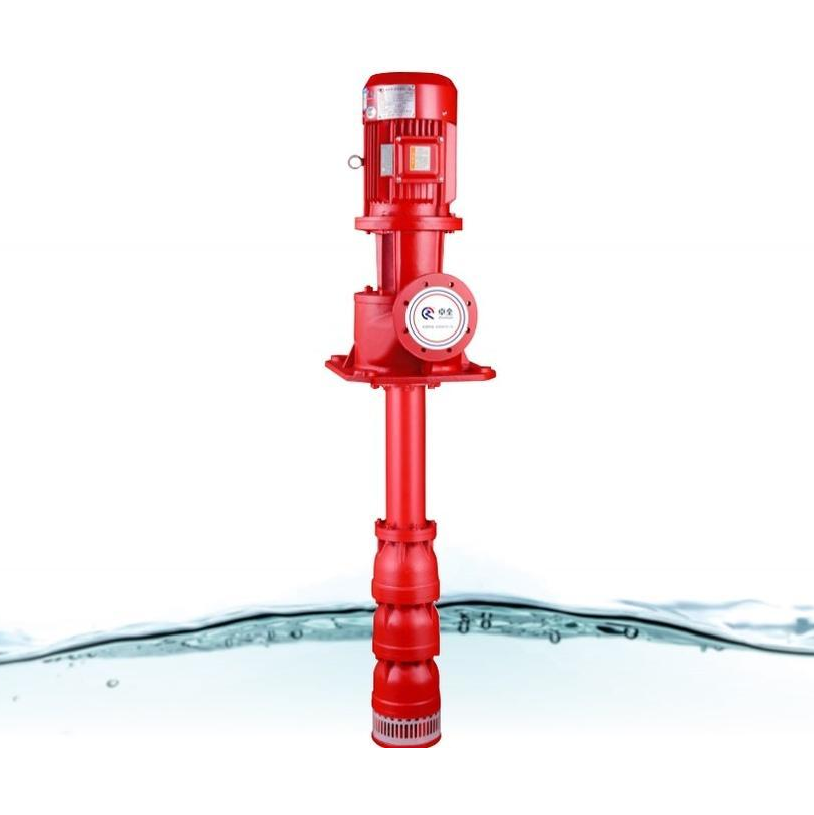

Vertical Deep Well Long-shaft Fire Pump Unit

Share to:

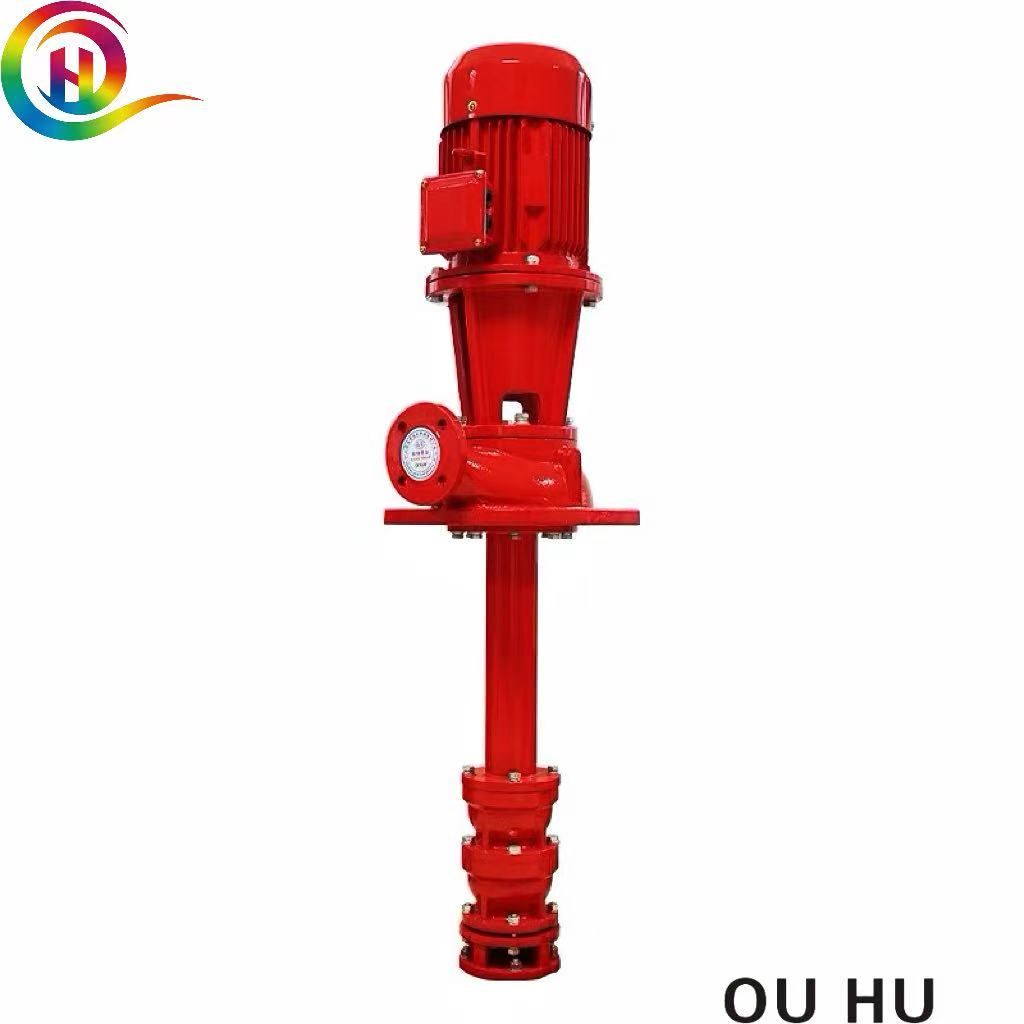

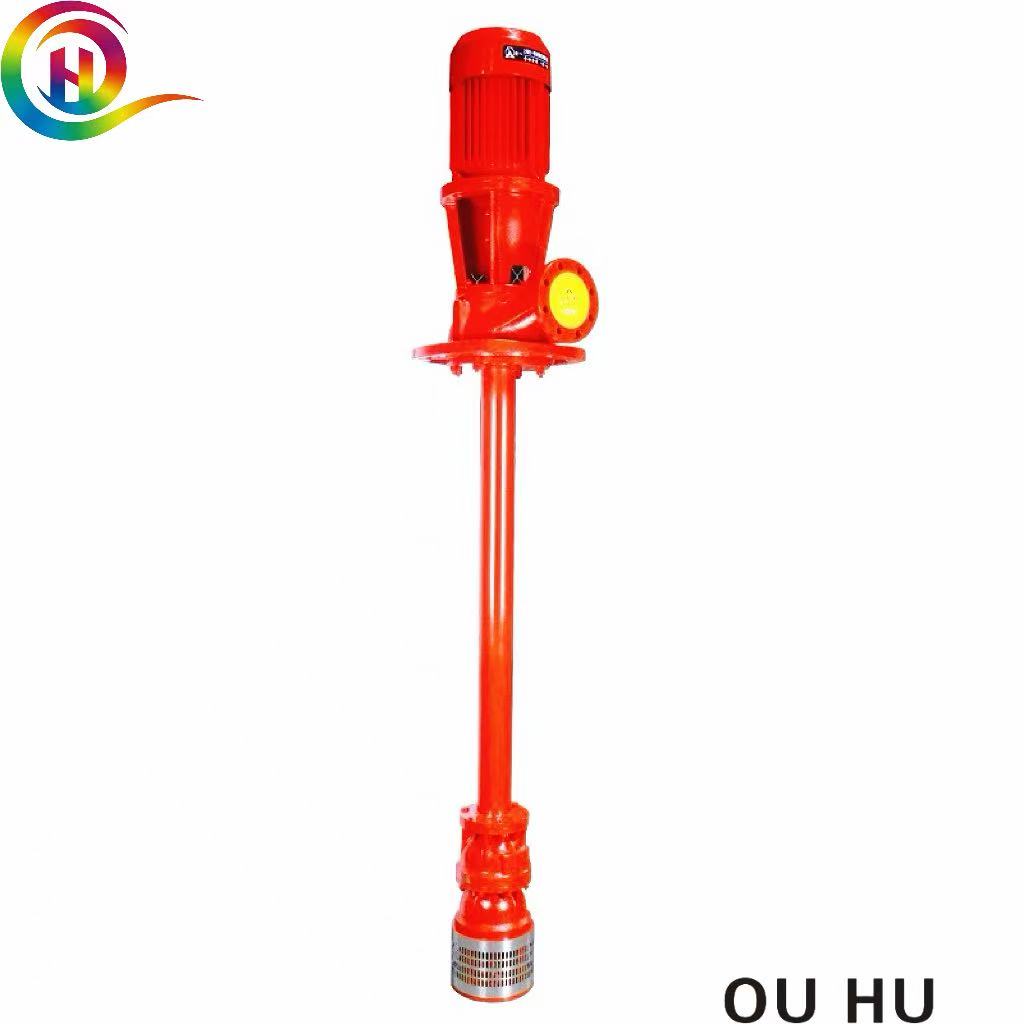

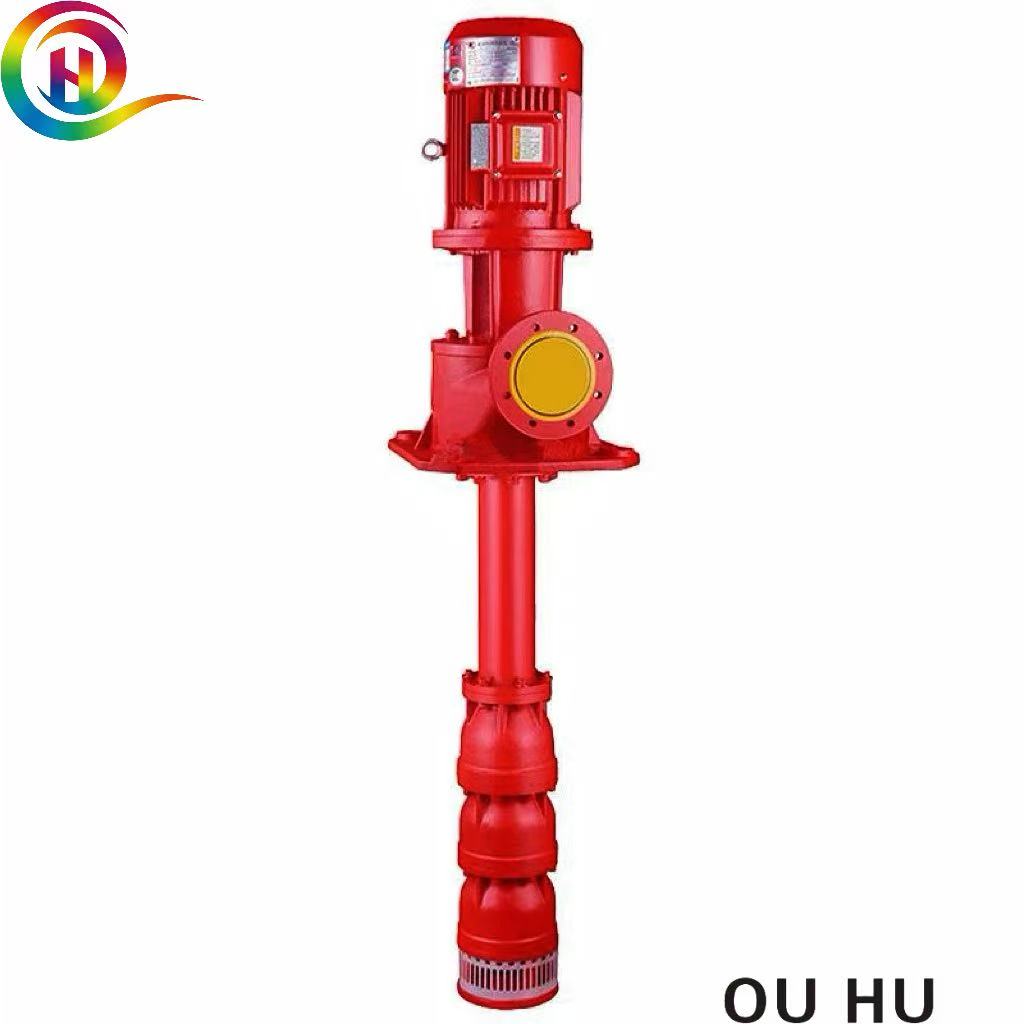

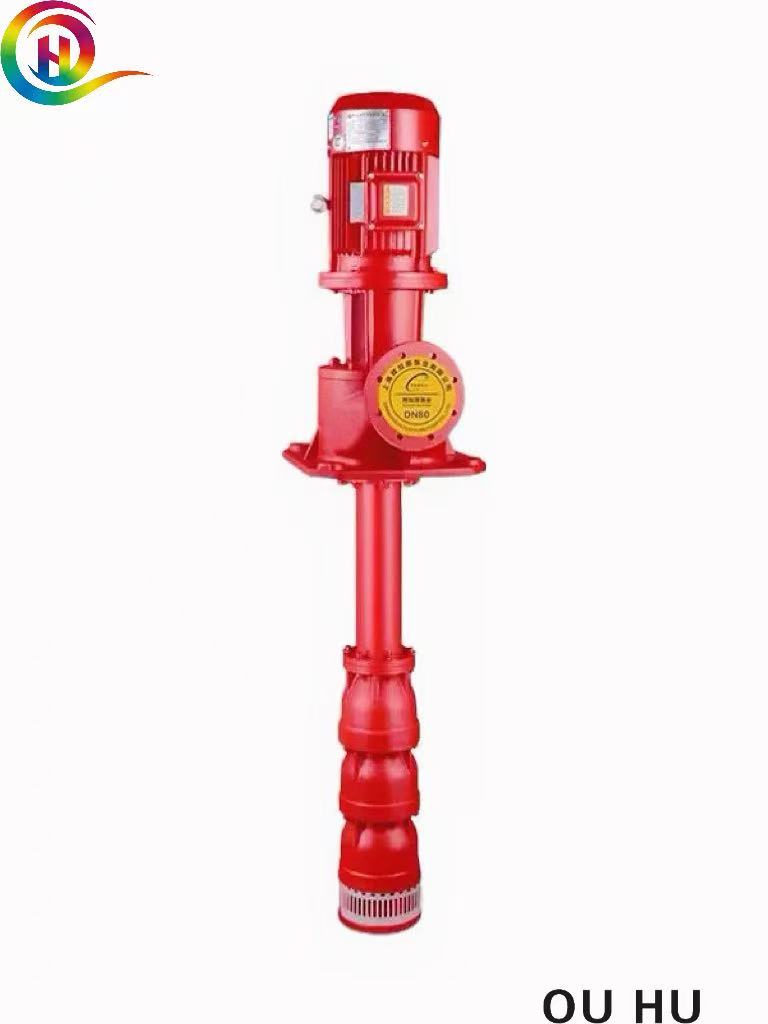

Vertical Turbine Long Shaft Fire Pump | Deep Well Fire Fighting Pump for Emergency Fire System

Ouhu Pump's XBD series vertical long-shaft deep well fire pump is a professional fire fighting equipment, fully compliant with NFPA 20 standards, designed for emergency fire water supply in buildings, industrial plants, and other projects.

Core Advantages:

• Vertical Turbine Structure: Long shaft design, suitable for deep well water intake, stable operation, low noise, long service life

• High Efficiency & Reliability: Centrifugal impeller, high flow, high head, 24/7 standby for emergency fire fighting

• NFPA 20 Compliant: Meet international fire protection standards, suitable for global projects

• Wide Application: Commercial buildings, high-rise apartments, warehouses, data centers, oil & gas industry

• Customizable: Available in 50GPM-1000GPM flow, 6Bar-20Bar pressure, OEM/ODM supported

Technical Specifications:

• Model: XBD Vertical Turbine Fire Pump

• Flow Range: 50GPM - 1000GPM

• Pressure Range: 6Bar - 20Bar

• Material: Cast iron / Stainless steel (optional)

• Certification: CE, NFPA 20 (UL/FM optional)

• Application: Fire fighting system, emergency water supply

Shanghai Ouhu Pump Industry Manufacturing Co., Ltd. is a professional fire pump manufacturer, providing one-stop fire fighting pump solutions. Contact us for detailed quotation and technical support.

Flow Range :	5~100 L/s
Head Range:	40~200m
Power Range :	4~200KW
Diameter :	DN50~250mm
Rotational Speed :	2900 r/min
Material :	Ductile Iron Pump Body, Stainless Steel Impeller & Shaft
Standard:	GB6245, GB50974, CCCF Certified
Availability:

Quantity:



Inquire Add to Basket

Model:
XBD Vertical Turbine Long Shaft Fire Pump
Brand:
OuHu Pump

Product Description

Product Overview

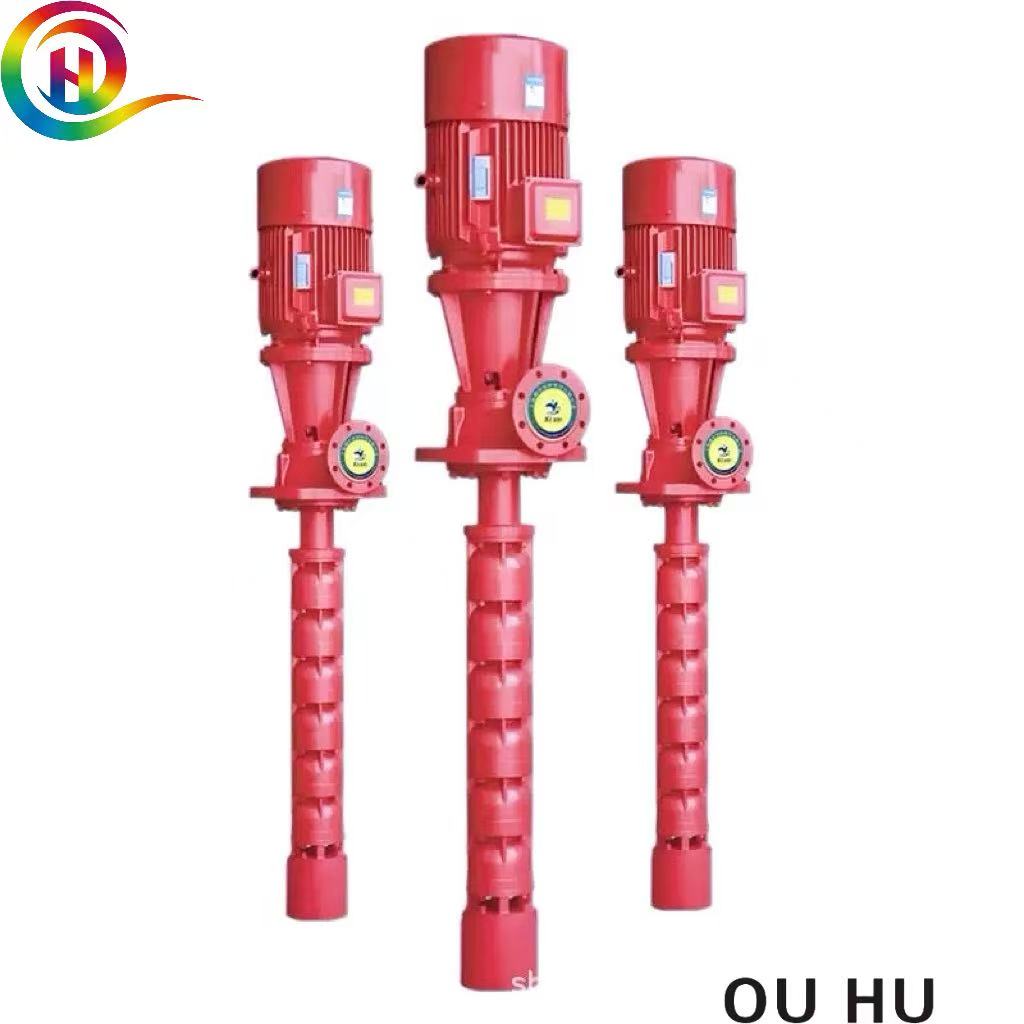

● The XBD-GL series vertical motor-driven fire pump unit (vertical deep well long-shaft fire pump unit) is a new generation of pipeline pump fire pump units designed and developed by our company in accordance with the latest fire pump standards and mandatory certification requirements for fire protection products. Its performance and technical specifications comply with the relevant requirements of the national standards GB6245 "Fire Pumps" and GB 50974 "Technical Specifications for Fire Water Supply and Fire Hydrant Systems".

● This series of products can be verified on the Fire Protection Product Information Network of the Ministry of Public Security (www.cccf.net.cn).

Product Features

● It is a vertical multi-stage fluid extraction device with a small footprint. Its working components can extend to depths of over one hundred meters to extract fluid media, and it offers various driving methods.

● Depending on the pumped medium and other operating conditions, different materials, structures, and motor specifications are available to meet various customer needs.

● It features a wide flow range, high head, compact structure, and stable operation.

Operating Conditions and Performance Parameters

Flow Rate: 5~100 L/s

Head: 40m~200m

Power: 4KW~200KW

Diameter: DN50~250mm

Rotational Speed: 2900 r/min

Material: Ductile iron pump body, stainless steel impeller, stainless steel shaft

Product Applications

Deep well fire pumps are mainly used in fixed fire fighting systems of industrial and mining enterprises, engineering construction projects, and high-rise buildings, for fire hydrant extinguishing and automatic sprinkler systems. They can be used to transport clean water and media with chemical properties similar to water, and can also be used in domestic and industrial water supply systems, as well as building and municipal water supply and drainage systems.

Serial Number	Model and specifications	Flow	Pressure	Power	Diameter	Price
Serial Number	Model and specifications	L/S	Mpa	KW	DN	Yuan
1	XBD9.0/5GJ-OHSJ	5	0.9	11	DN50	7930
2	XBD10.0/5GJ-OHSJ	5	1	11	DN50	8130
3	XBD11.0/5GJ-OHSJ	5	1.1	15	DN50	8860
4	XBD15.0/5GJ-OHSJ	5	1.5	18.5	DN50	13780
5	XBD16.0/5GJ-OHSJ	5	1.6	18.5	DN50	11370
6	XBD17.0/5GJ-OHSJ	5	1.7	22	DN50	11668
7	XBD4.0/10GJ-OHSJ	10	0.4	7.5	DN100	7160
8	XBD6.0/10GJ-OHSJ	10	0.6	15	DN100	8200
9	XBD7.0/10GJ-OHSJ	10	0.7	18.5	DN100	9760
10	XBD9.0/10GJ-OHSJ	10	0.9	22	DN100	10388
11	XBD11.0/10GJ-OHSJ	10	1.1	22	DN100	10388
12	XBD12.5/10GJ-OHSJ	10	1.25	30	DN100	12668
13	XBD14.5/10GJ-OHSJ	10	1.45	30	DN100	12668
14	XBD16.5/10GJ-OHSJ	10	1.65	37	DN100	13000
15	XBD17.5/10GJ-OHSJ	10	1.75	45	DN100	14970
16	XBD4.0/15GJ-OHSJ	15	0.4	11	DN100	7530
17	XBD5.2/15GJ-OHSJ	15	0.52	15	DN100	8000
18	XBD6.0/15GJ-OHSJ	15	0.6	15	DN100	8000
19	XBD7.0/15GJ-OHSJ	15	0.7	18.5	DN100	9760
20	XBD8.0/15GJ-OHSJ	15	0.8	22	DN100	10388
21	XBD10.0/15GJ-OHSJ	15	1	30	DN100	12000
22	XBD11.0/15GJ-OHSJ	15	1.1	30	DN100	12400
23	XBD12.0/15GJ-OHSJ	15	1.2	37	DN100	13868
24	XBD14.0/15GJ-OHSJ	15	1.4	37	DN100	13868
25	XBD15.0/15GJ-OHSJ	15	1.5	45	DN100	17300
26	XBD16.0/15GJ-OHSJ	15	1.6	45	DN100	17300
27	XBD17.0/15GJ-OHSJ	15	1.7	55	DN100	19685
28	XBD20.0/15GJ-OHSJ	15	2	55	DN100	19685
29	XBD4.0/20GJ-OHSJ	20	0.4	15	DN100	8800
30	XBD5.0/20GJ-OHSJ	20	0.5	18.5	DN100	10200
31	XBD6.0/20GJ-OHSJ	20	0.6	18.5	DN100	10200
32	XBD7.0/20GJ-OHSJ	20	0.7	22	DN100	10388
33	XBD8.0/20GJ-OHSJ	20	0.8	30	DN100	12200
34	XBD9.0/20GJ-OHSJ	20	0.9	30	DN100	12400
35	XBD10.0/20GJ-OHSJ	20	1	37	DN100	13000
36	XBD12.0/20GJ-OHSJ	20	1.2	37	DN100	13730
37	XBD13.0/20GJ-OHSJ	20	1.3	45	DN100	16950
38	XBD15.0/20GJ-OHSJ	20	1.5	55	DN100	19930

Serial Number	Model and specifications	Flow	Pressure	Power	Diameter	Price
Serial Number	Model and specifications	L/S	Mpa	KW	DN	Yuan
39	XBD16.0/20GJ-OHSJ	20	1.6	55	DN100	20000
40	XBD18.0/20GJ-OHSJ	20	1.8	55	DN100	20000
41	XBD19.5/20GJ-OHSJ	20	1.95	75	DN100	22800
42	XBD5.0/25GJ-OHSJ	25	0.5	22	DN100	10400
43	XBD6.0/25GJ-OHSJ	25	0.6	30	DN100	12200
44	XBD7.0/25GJ-OHSJ	25	0.7	30	DN100	12200
45	XBD8.0/25GJ-OHSJ	25	0.8	37	DN100	13000
46	XBD10.0/25GJ-OHSJ	25	1	37	DN100	13500
47	XBD11.0/25GJ-OHSJ	25	1.1	45	DN100	14868
48	XBD11.8/25GJ-OHSJ	25	1.18	75	DN100	22500
49	XBD13.0/25GJ-OHSJ	25	1.3	45	DN100	15000
50	XBD14.0/25GJ-OHSJ	25	1.4	55	DN100	18960
51	XBD16.0/25GJ-OHSJ	25	1.6	55	DN100	18960
52	XBD17.0/25GJ-OHSJ	25	1.7	75	DN100	22540
53	XBD18.2/25GJ-OHSJ	25	1.82	90	DN100	23800
54	XBD20.0/25GJ-OHSJ	25	2	90	DN100	24500
55	XBD3.5/30GJ-OHSJ	30	0.35	15	DN100	8400
56	XBD4.5/30GJ-OHSJ	30	0.45	18.5	DN100	10200
57	XBD5.0/30GJ-OHSJ	30	0.5	22	DN100	10388
58	XBD6.0/30GJ-OHSJ	30	0.6	22	DN100	10388
59	XBD7.0/30GJ-OHSJ	30	0.7	30	DN100	12400
60	XBD8.0/30GJ-OHSJ	30	0.8	37	DN100	13200
61	XBD9.0/30GJ-OHSJ	30	0.9	45	DN100	15068
62	XBD10.0/30GJ-OHSJ	30	1	45	DN100	15230
63	XBD11.0/30GJ-OHSJ	30	1.1	55	DN100	18400
64	XBD12.0/30GJ-OHSJ	30	1.2	55	DN100	18400
65	XBD15.0/30GJ-OHSJ	30	1.5	75	DN100	22650
66	XBD16.0/30GJ-OHSJ	30	1.6	75	DN100	23867
67	XBD17.0/30GJ-OHSJ	30	1.7	90	DN100	25550
68	XBD18.0/30GJ-OHSJ	30	1.8	90	DN100	25550
69	XBD20.0/30GJ-OHSJ	30	2	110	DN100	33420
70	XBD4.0/40GJ-OHSJ	40	0.4	30	DN150	12400
71	XBD5.0/40GJ-OHSJ	40	0.5	37	DN150	13200
72	XBD6.0/40GJ-OHSJ	40	0.6	37	DN150	13200
73	XBD7.0/40GJ-OHSJ	40	0.7	45	DN150	15068
74	XBD8.0/40GJ-OHSJ	40	0.8	45	DN150	15800
75	XBD9.0/40GJ-OHSJ	40	0.9	55	DN150	18400
76	XBD10.0/40GJ-OHSJ	40	1	55	DN150	18700

Serial Number	Model and specifications	Flow	Pressure	Power	Diameter	Price
Serial Number	Model and specifications	L/S	Mpa	KW	DN	Yuan
77	XBD12.0/40GJ-OHSJ	40	1.2	75	DN150	21730
78	XBD13.0/40GJ-OHSJ	40	1.3	75	DN150	21730
79	XBD14.0/40GJ-OHSJ	40	1.4	90	DN150	24600
80	XBD16.0/40GJ-OHSJ	40	1.6	90	DN150	24600
81	XBD18.0/40GJ-OHSJ	40	1.6	110	DN150	33730
82	XBD20.0/40GJ-OHSJ	40	2	132	DN150	37950
83	XBD4.0/45GJ-OHSJ	45	0.4	30	DN150	12600
84	XBD5.0/45GJ-OHSJ	45	0.5	37	DN150	13400
85	XBD6.0/45GJ-OHSJ	45	0.6	45	DN150	16935
86	XBD7.0/45GJ-OHSJ	45	0.7	55	DN150	19068
87	XBD9.0/45GJ-OHSJ	45	0.9	75	DN150	21600
88	XBD10.0/45GJ-OHSJ	45	1	75	DN150	21800
89	XBD12.0/45GJ-OHSJ	45	1.2	90	DN150	24600
90	XBD14.0/45GJ-OHSJ	45	1.4	110	DN150	32400
91	XBD15.0/45GJ-OHSJ	45	1.5	132	DN150	32268
92	XBD4.0/50GJ-OHSJ	50	0.4	37	DN150	13400
93	XBD5.0/50GJ-OHSJ	50	0.5	45	DN150	15268
94	XBD6.0/50GJ-OHSJ	50	0.6	45	DN150	15650
95	XBD7.0/50GJ-OHSJ	50	0.7	55	DN150	18600
96	XBD8.0/50GJ-OHSJ	50	0.8	55	DN250	19200
97	XBD9.0/50GJ-OHSJ	50	0.9	75	DN150	22530
98	XBD10.0/50GJ-OHSJ	50	1	75	DN150	22800
99	XBD12.0/50GJ-OHSJ	50	1.2	90	DN150	24800
100	XBD14.0/50GJ-OHSJ	50	1.4	110	DN150	34400
101	XBD16.0/50GJ-OHSJ	50	1.6	132	DN150	36530
102	XBD18.0/50GJ-OHSJ	50	1.8	200	DN150	43500
103	XBD4.0/60GJ-OHSJ	60	0.4	45	DN150	15667
104	XBD5.0/60GJ-OHSJ	60	0.5	55	DN150	18933
105	XBD7.0/60GJ-OHSJ	60	0.7	55	DN150	18933
106	XBD8.0/60GJ-OHSJ	60	0.8	75	DN150	21600
107	XBD9.0/60GJ-OHSJ	60	0.9	90	DN150	24400
108	XBD10.0/60GJ-OHSJ	60	1	90	DN150	24400
109	XBD11.0/60GJ-OHSJ	60	1.1	110	DN250	32400
110	XBD12.0/60GJ-OHSJ	60	1.2	110	DN150	32700
111	XBD13.0/60GJ-OHSJ	60	1.3	132	DN150	37600
112	XBD14.5/60GJ-OHSJ	60	1.45	160	DN150	39750
113	XBD15.5/60GJ-OHSJ	60	1.55	160	DN150	39750
114	XBD5.0/70GJ-OHSJ	70	0.5	55	DN150	18933

Serial Number	Model and specifications	Flow	Pressure	Power	Diameter	Price
Serial Number	Model and specifications	L/S	Mpa	KW	DN	Yuan
115	XBD6.0/70GJ-OHSJ	70	0.6	55	DN150	18933
116	XBD7.0/70GJ-OHSJ	70	0.7	75	DN150	21600
117	XBD8.0/70GJ-OHSJ	70	0.8	90	DN150	23667
118	XBD9.0/70GJ-OHSJ	70	0.9	110	DN150	32867
119	XBD10.0/70GJ-OHSJ	70	1	110	DN150	32867
120	XBD11.0/70GJ-OHSJ	70	1.1	132	DN150	35267
121	XBD12.0/70GJ-OHSJ	70	1.2	132	DN150	35267
122	XBD13.0/70SJ-OHSJ	70	1.3	160	DN150	38750
123	XBD14.0/70GJ-OHSJ	70	1.4	160	DN150	38750
124	XBD15.0/70GJ-OHSJ	70	1.5	200	DN150	44850
125	XBD5.0/80GJ-OHSJ	80	0.5	75	DN200	23333
126	XBD6.0/80GJ-OHSJ	80	0.6	90	DN200	26000
127	XBD7.0/80GJ-OHSJ	80	0.7	90	DN200	26500
128	XBD8.0/80GJ-OHSJ	80	0.8	110	DN200	32933
129	XBD9.0/80GJ-OHSJ	80	0.9	110	DN200	32933
130	XBD10.0/80GJ-OHSJ	80	1	132	DN200	34400
131	XBD11.0/80GJ-OHSJ	80	1.1	132	DN200	35067
132	XBD12.0/80GJ-OHSJ	80	1.2	132	DN200	35067
133	XBD13.0/80GJ-OHSJ	80	1.3	160	DN200	38750
134	XBD14.0/80GJ-OHSJ	80	1.4	200	DN200	43600
135	XBD5.0/90GJ-OHSJ	90	0.5	90	DN200	24667
136	XBD6.0/90GJ-OHSJ	90	0.6	90	DN200	24667
137	XBD7.0/90GJ-OHSJ	90	0.7	110	DN200	33133
138	XBD8.0/90GJ-OHSJ	90	0.8	132	DN200	36800
139	XBD9.0/90GJ-OHSJ	90	0.9	132	DN200	36800
140	XBD10.0/90GJ-OHSJ	90	1	160	DN200	38760
141	XBD11.0/90GJ-OHSJ	90	1.1	160	DN200	38760
142	XBD12.0/90GJ-OHSJ	90	1.2	200	DN200	46530
143	XBD5.0/100GJ-OHSJ	100	0.5	110	DN200	33100
144	XBD6.0/100GJ-OHSJ	100	0.6	110	DN200	33100
145	XBD7.0/100GJ-OHSJ	100	0.7	132	DN200	36400
146	XBD8.0/100GJ-OHSJ	100	0.8	160	DN200	38430
147	XBD9.0/100GJ-OHSJ	100	0.9	160	DN200	38430
148	XBD9.5/100GJ-OHSJ	100	0.95	200	DN200	46530
149	XBD10.0/100GJ-OHSJ	100	1	160	DN200	38750
150	XBD11.0/100GJ-OHSJ	100	1.11	200	DN200	46530

Vertical Turbine Long Shaft Fire Pump Vertical Turbine Fire Pump Long Shaft Deep Well Fire Pump Vertical Fire Pump for Fire Fighting System NFPA 20 Vertical Fire Pump Deep Well Fire Fighting Pump

Related Products

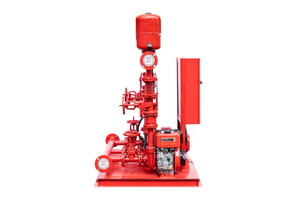

OEDJ Series Complete Fire Pump System Set
