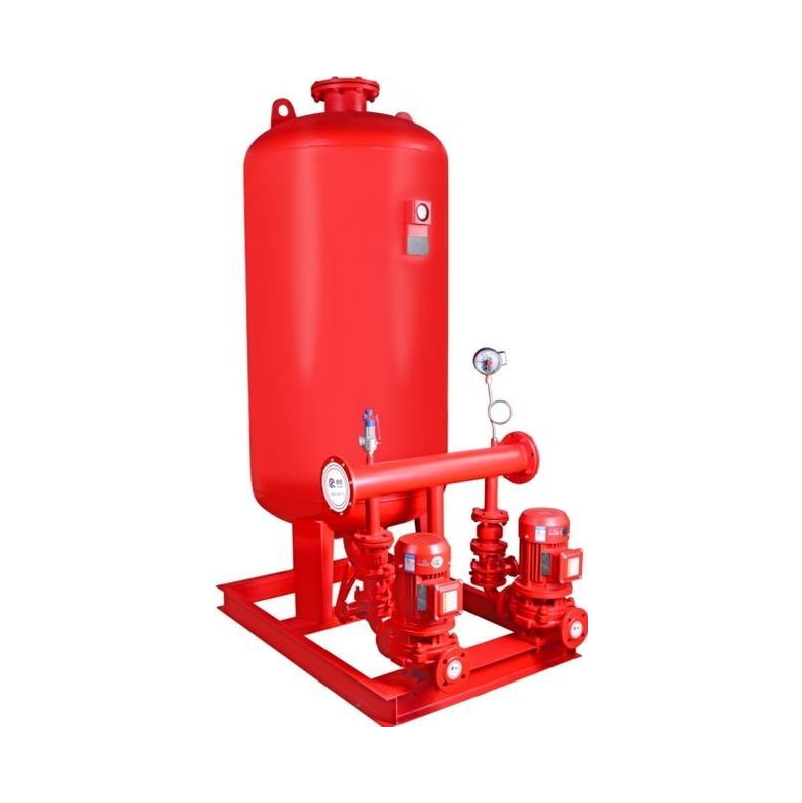

Product Overview
This product is manufactured in accordance with the GB6245-2006 design specifications and has obtained the national mandatory certification certificate issued by the Fire Product Conformity Assessment Center of the Ministry of Public Security. The certification can be verified on the Ministry of Public Security's Fire Product Information Network (www.cccf.net.cn).
Technical Parameters
Flow : 1~5 L/s
Head: 32~180 m
Rotational speed: 2900 r/min
Material: Tank and piping made of carbon steel, ball mill pump body, stainless steel impeller, stainless steel shaft.
Application Scope
To ensure that the fire pump unit is always in a ready state, maintaining normal pressure in the fire fighting equipment pipeline network for emergency fire extinguishing purposes.

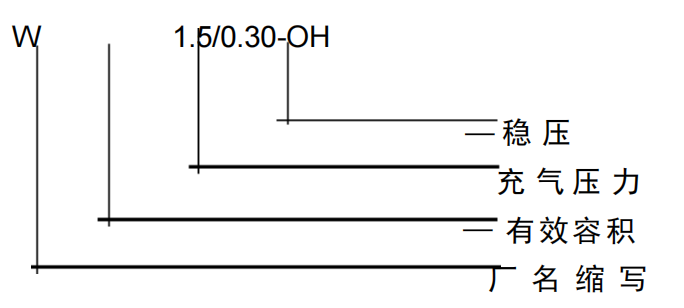

Model Designation Meaning
W -----Abbreviation
----Effective volume
1.5/0.----Inflation pressure
30-OH-----Voltage regulation
Serial Number | Model and specifications | Can diameter | Piping | DN25-50 | DN65 | DN80 | DN100 | Remark |
1 | W1.5/0.30-OH | 800X1.0 | Unilateral | 11200 | 11400 | 12000 | 12500 | Match ISG |
Bilateral | 11800 | 12400 | 13000 | 13000 | ||||
2 | W1.5/0.45-OH | 1000X1.0 | Unilateral | 13200 | 13900 | 14700 | 15000 | |
Bilateral | 14000 | 14700 | 15500 | 16000 | ||||
3 | W1.5/0.70-OH | 1200×1.0 | Unilateral | 15400 | 15700 | 16500 | 17000 | |
Bilateral | 16200 | 16900 | 17600 | 18000 |
Note: The above prices for voltage stabilizing equipment include pressure tanks, piping, valve components, pressure gauges, and control cabinets, made of carbon steel, but do not include water pumps.
